Product

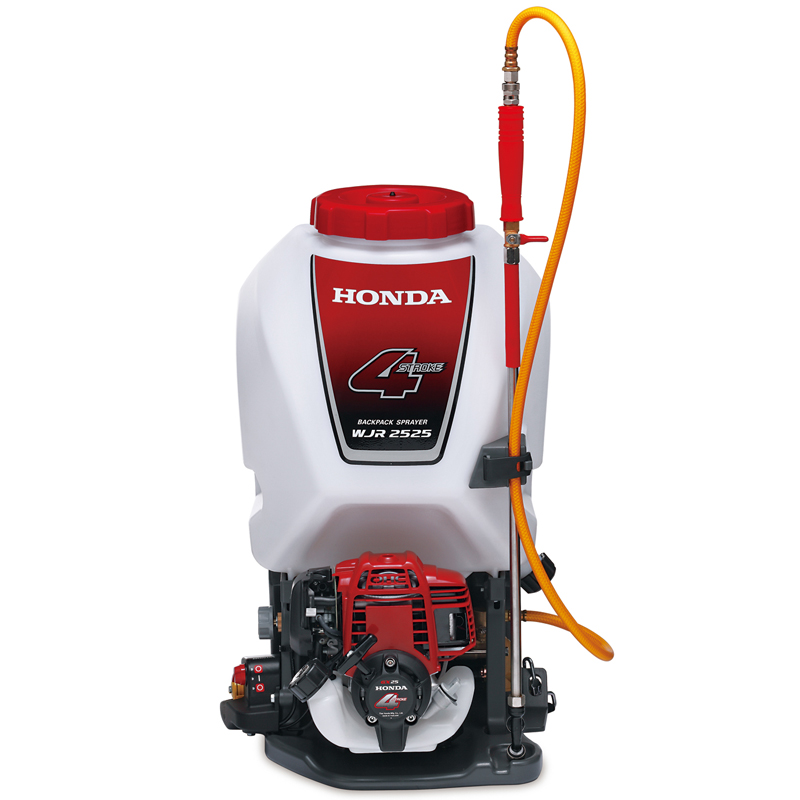

HONDA WJR2525T
Description
Workability
- With consideration to reducing the load to the operator.
- Adopts "S"-shaped shoulder belt and large back pad designed to fit the body comfortably
Handling
- Detachable nozzle holder: The nozzle and hose which gets in the way when moving can be contained neatly.
- Big tank cap
- Independent operation box
- Handles located on both sides of the tank’s lower body for easy lifting
Fuel Economy
- Equipped with Mini. 4-stroke Honda GX 25 Engine
Design
- Newly Conspicuous "Design"
Specification
| Data | Description |
|---|---|
| Frame Type | GCS, GCD, GCB, GCL, GCV |
| LxWxH (mm)*1 | 390 x 415 x 695 |
| Dry Weight (kg)*2 | 12.0 |
| Chemical Tank Capacity (lit.) | 25 |
Pump Parameters
| Data | Description |
|---|---|
| Type | Plunger Type |
| Pressure in shut-off valve close condition (MPa) | 2.5/7000 rpm |
| Suction Amount (lit./min) | 6.6/7000 rpm |
Engine Parameters
| Data | Description |
|---|---|
| Model/Type | GX25T/Air-cooled single-cylinder 4-stroke OHV |
| Displacement (cm3) | 25.0 |
| Engine Net Power/Engine Speed (KW/rpm)*3 | 0.72/7000 |
| Maximum Net Torque/Engine Speed (KW/rpm)*3 | 1.0/5000 |
| Fuel Tank Capacity (lit.) | 0.53 |
| Starting System | SystemRecoil |
